Beschreibung
Hier finden Sie alle wichtigen Informationen zu unseren Flexrohren:
- Material: Edelstahl
- Breite: 130,0 – 2000,0 mm

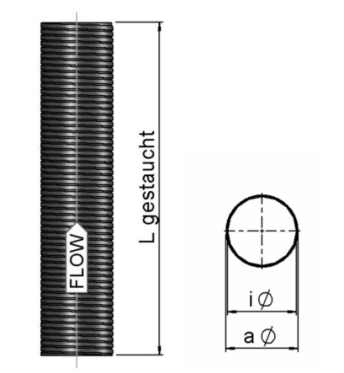

- Dimensionen: Ø 28,0 – 275,0 mm
Durchmessera in mm |
Zoll |
Durchmesseri in mm |
Artikelnummer1000mm |
Artikelnummer2000mm |
| 28,0 | 1″ | 25,0 | – | 5370 250 |
| 35,5 | 1 1/4″ | 32,0 | – | 5370 252 |
| 41,5 | – | 38,0 | 5370 200 | 5370 253 |
| 42,5 | 1 1/2″ | 39,0 | – | 5370 254 |
| 45,5 | – | 42,0 | – | 5370 255 |
| 48,5 | 1 3/4″ | 45,0 | – | 5370 256 |
| 54,0 | – | 50,0 | 5370 203 | 5370 257 |
| 55,0 | 2″ | 51,0 | 5370 202 | 5370 258 |
| 59,0 | – | 55,0 | 5370 205 | 5370 259 |
| 64,0 | – | 60,0 | 5370 207 | 5370 261 |
| 64,0 | 2 3/8″ | 61,0 | 5370 204 | 5370 260 |
| 68,0 | 2 1/2″ | 64,0 | 5370 206 | 5370 262 |
| 69,0 | – | 65,0 | 5370 209 | 5370 263 |
| 74,0 | 2 3/4″ | 70,0 | 5370 208 | 5370 264 |
| 79 | – | 75,0 | 5370 213 | 5370 267 |
| 81 | 3″ | 77,0 | 5370 210 | 5370 290 |
| 84,0 | – | 80,0 | 5370 212 | 5370 268 |
| 94,0 | 3 1/2″ | 90,0 | 5370 214 | 5370 270 |
| 104,0 | – | 100,0 | 5370 219 | 5370 273 |
| 107 | 4″ | 103,0 | 5370 216 | 5370 272 |
| 108 | – | 104,0 | 5370 218 | 5370 274 |
| 112,0 | 4 1/4″ | 108,0 | 5370 220 | 5370 276 |
| 114 | – | 110,0 | 5370 221 | 5370 275 |
| 115 | – | 111,0 | 5370 222 | 5370 278 |
| 119 | 4 1/2″ | 115,0 | 5370 224 | 5370 280 |
| 124,0 | – | 120,0 | 5370 225 | 5370 279 |
| 125,5 | – | 121,5 | 5370 226 | 5370 282 |
| 132,0 | 5″ | 128,0 | 5370 228 | 5370 284 |
| 145,0 | 5 1/2″ | 140,0 | 5370 230 | 5370 286 |
| 157,5 | 6″ | 153,5 | 5370 232 | 5370 288 |
| 210 | 8″ | 205,0 | – | 5370 296 |
| 275,0 | – | 270,0 | 5370 294 | – |
